803-CL +-0.0001" English
SKU
803-CL
Invar Tubes | 12587 Series |
Tube Length Tolerance | ±0.0001" |
Total Stack-up Error | ±0.0005" |

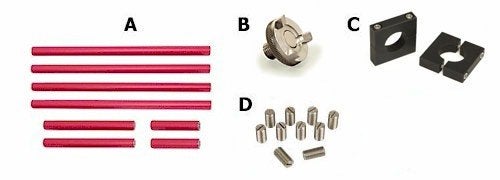

Legend | Part Number | Description | Qty |
A | 12587-20IN | 20" Invar Tube | 4 |
12587-10IN | 10" Invar Tube | 2 | |
12587-5IN | 5" Invar Tube | 2 | |
B | 1.5INV-1 | SMR Holder | 2 |
C | 15199 | Clamp-On Foot | 4 |
D | 12406-G1 | Stainless Steel Invar System Connectors | 10 |
no photo | 12421-G1 | Plastic Case | 1 |
no photo | - | NIST Traceable Certification for Kit | 1 |
Any 1.5" SMR
Case | Plastic case with foam insert |
---|---|
Finish | Oil and stain resistant PVC jacket, red |
Invar Tubing | 1″ (25.4 mm) diameter Invar with stainless steel end caps, having 3/8″-24 internal threads on each end |
Thermal Expansion Coefficient | 0.68 x 10-6 in./in.°F for temperature range of 0-200°F (1.26×10-6 m/m/°C for temperature range of -18°C to 93°C) |
Weight, Product & Case (Approx.) lb | 17 |
Weight, Product & Case (Approx.) kg | 7.7 |
Weight, Shipping (Approx.) lb | 22 |
Weight, Shipping (Approx.) kg | 10 |
